Product : ‘SANT’ Bronze Swing Check Valve
Product Standard : IS-778
Pressure/Class/Rating : Class-1
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Cover
Type of Seat : Integral seat
Trim : Cu-Alloy
End Details : Screwed female threads to IS:554 Parallel
Body Test Pressure : 1.5 MPa Hyd.
Seat Test Pressure : 1.0 MPa Hyd.
Max Working Temperature: 45°C
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Cover & Hinge | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Hinge Pin, Plug & Nut | Forged Brass | IS:6912 FLB |
| Disc | Gun Metal (Rubber Faced) | IS:318 Gr.LTB2 |

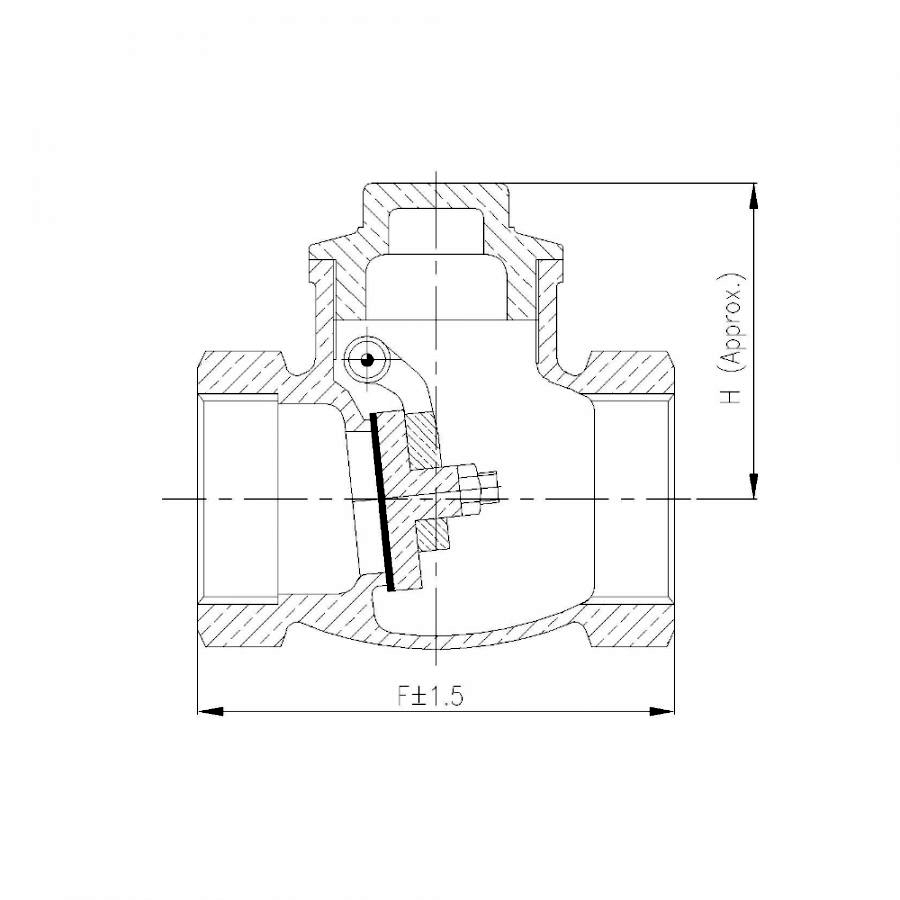

| Nominal Size | Nominal Size (Inches) | F | H (Approx.) |
|---|---|---|---|
| 15 | 1/2 | 65±1.5 | 42 |
| 20 | 3/4 | 75±1.5 | 50 |
| 25 | 1 | 95±1.5 | 63 |
| 32 | 1.1/4 | 105±1.5 | 65 |
| 40 | 1.1/2 | 125±1.5 | 85 |
| 50 | 2 | 150±1.5 | 93 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
