Product : ‘SANT’ Cast Steel Y-Type Strainer
Type of Pattern : Y-Type
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Y-Type Bolted Cover
Trim : SS AISI-304 Screen having 1.2 dia perforation
End Details : Flanges as per BS 10 Table J FF Undrilled
Body Test Pressure : 700 Psig Hyd.
Working Pressure : Max. BOP 350 Psig.
Maximum Working Temperature: 400ºC
Test Certificate in Form lll-C as per IBR is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet | Cast Carbon Steel | ASTM A216 Gr.WCB |
| Drain Plug | Stainless Steel | AISI-410 |
| Strainer | Stainless Steel | AISI-304 |
| Gasket | Compressed Asbestos Fibre | IS:2712 Gr.C |
| Fasteners | Mild Steel | — |

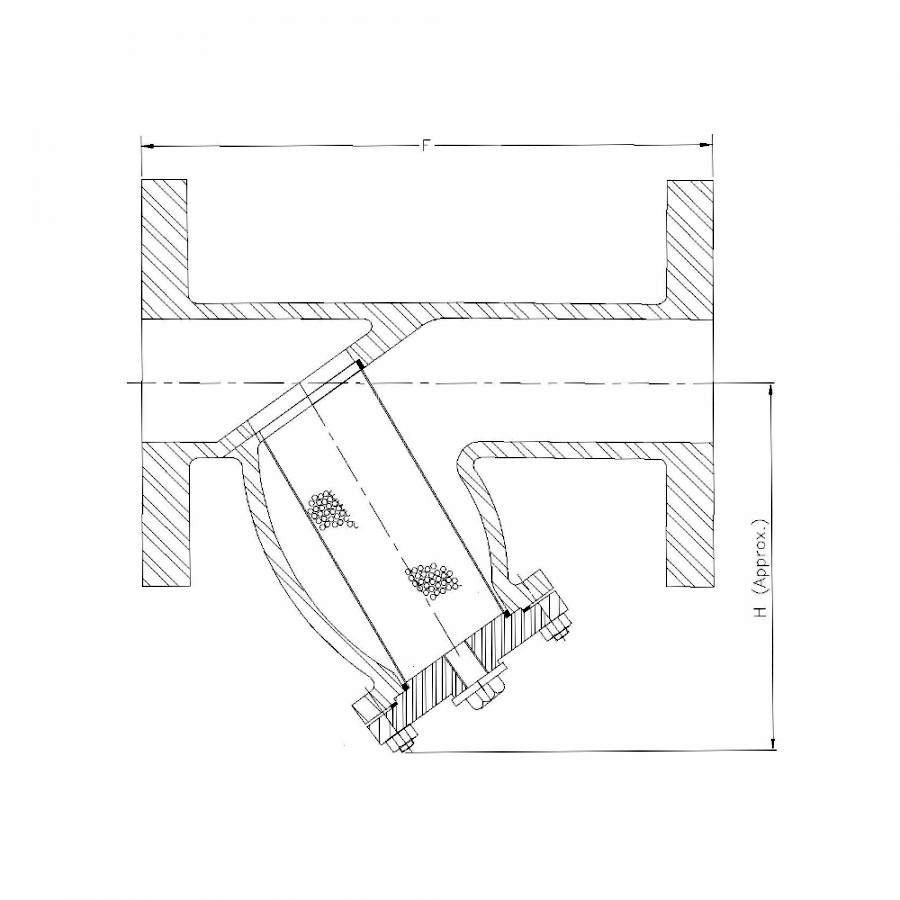

| Nominal Size | Nominal Size (Inches) | F | H (approx.) | ||
|---|---|---|---|---|---|
| 25 | 1 | 181±1 | 125 | ||
| 40 | 1 1/2 | 260±2 | 160 | ||
| 50 | 2 | 277±2 | 205 | ||
| 65 | 2 1/2 | 277±2 | 243 | ||
| 80 | 3 | 296±2 | 275 | ||
| 100 | 4 | 403±3 | 315 | ||
| 125 | 5 | 429±3 | 400 | ||
| 150 | 6 | 476±3 | 425 | ||
| 200 | 8 | 670±4 | 540 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
