Product : ‘SANT’ Cast Steel Accessible Feed Check Valve
Type Of Pattern : Right Angle
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI-410
Yoke Bush : Aluminum Bronze
Gland Packing : Expanded Pure Flexible Graphite
End Details : Flanges as per BS 10 Table J FF Undrilled
Body Test Pressure : 700 Psig Hyd.
Seat & Back Seat Test Pressure : 350 Psig Hyd.
Working Pressure : Max. BOP 350 Psig. (24.61Kg/cm²)
Maximum Working Temperature: 400ºC
Test Certificate in Form lll-C as per IBR is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet & Gland Flange | Cast Carbon Steel | ASTM A216 Gr.WCB |
| Body Seat Ring, Valve Disc | S.S. | AISI-410 |
| Spindle, Backseat Bush | S.S. | AISI-410 |
| Check Nut & Gland | Stainless Steel | AISI-410 |
| Disc Guide | Bronze | IBR 282(a)(iv) Gr.B |
| Gasket | Compressed Asbestos Fibre | IS:2712 Gr.C |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Handwheel | S.G. Iron | |
| Fasteners | Mild Steel | — |
| Yoke Bush | Aluminum Bronze | — |

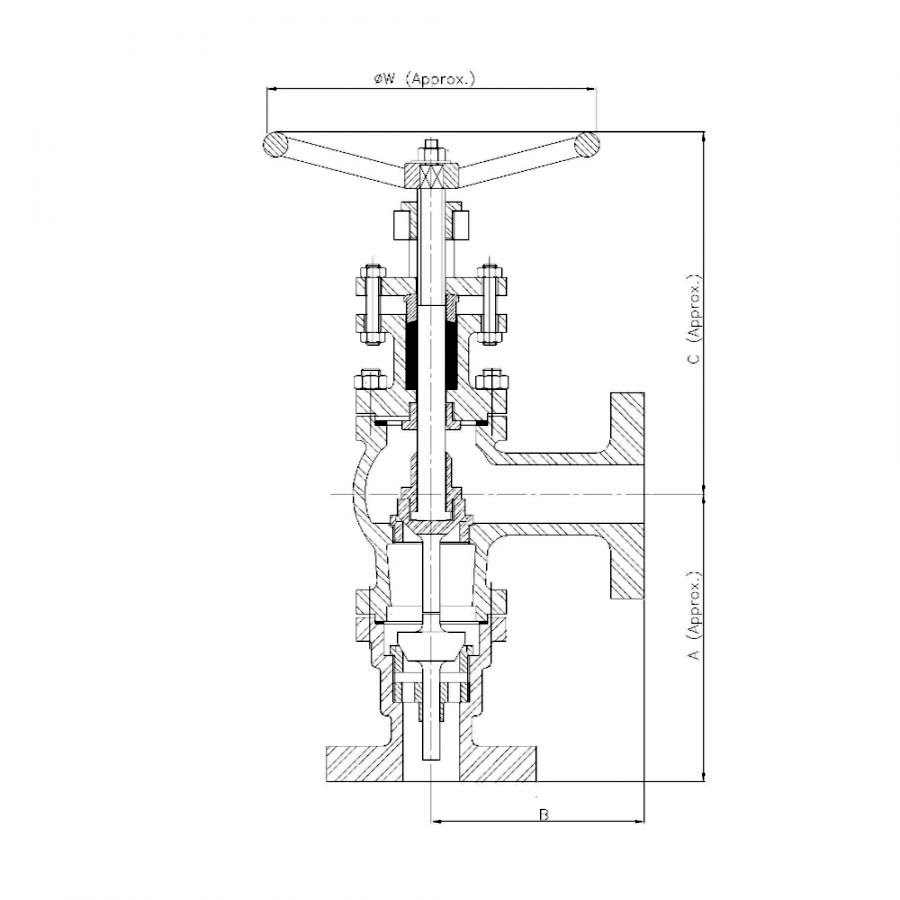

| Nominal Size | Nominal Size (Inches) | A±2 | B±2 | H Approx | W | ||
|---|---|---|---|---|---|---|---|
| 40 | 1.1/2 | 195 | 140 | 260 | 200 | ||
| 50 | 2 | 216 | 152 | 280 | 200 | ||
| 65 | 2.1/2 | 238 | 178 | 310 | 250 | ||
| 80 | 3 | 264 | 203 | 340 | 250 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
