Product Certification
UL Listed / FM Approved (EX 15973)
Connection Ends
Flange to BS EN 1092-2:1997
Working Pressure
PN16
Temperature Range
0°C – 100°C
Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

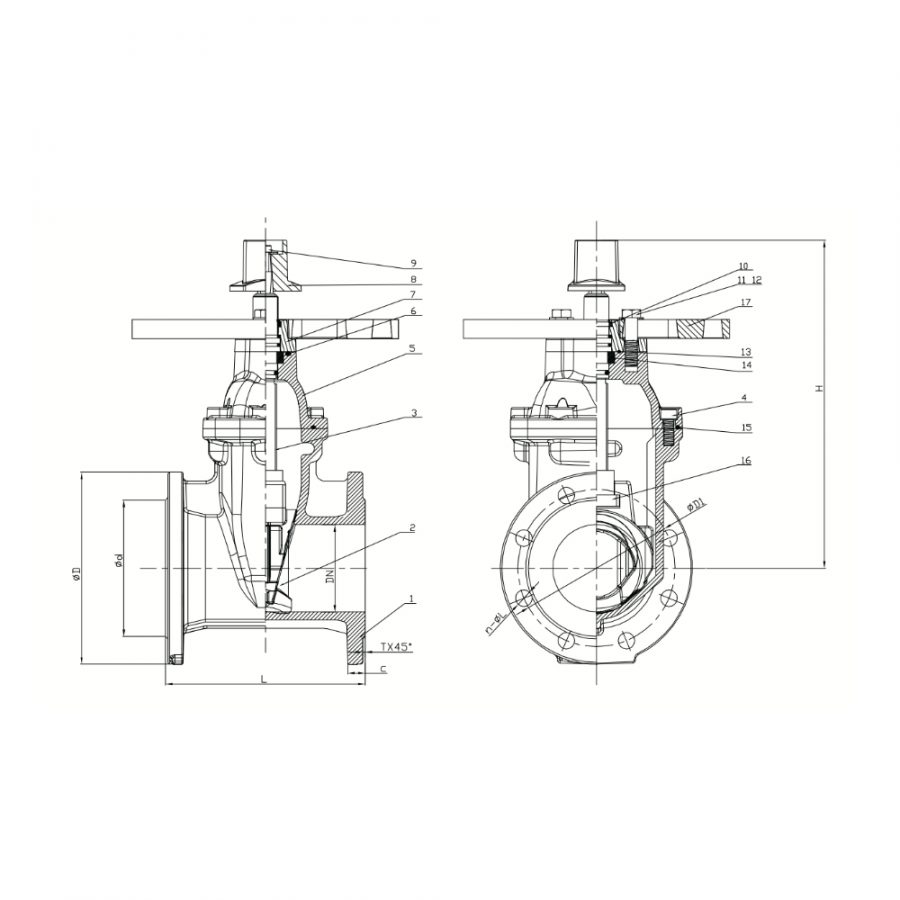

| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Valve Body | EN-GJS-450-10 |
| 2 | Resilient Wedge Disc | EN-GJS-450-10+EPDM |
| 3 | Stem | Stainless Steel |
| 4 | Bolt | Carbon Steel Zinc Plated |
| 5 | Bonnet | EN-GJS-450-10 |
| 6 | O-Ring | NBR |
| 7 | Gland | EN-GJS-450-10 |
| 8 | Stem Cap | EN-GJS-450-10 |
| 9 | Bolt | Carbon Steel Zinc Plated |
| 10 | Ring Wiper | NBR |
| 11 | Bolt | Carbon Steel Zinc Plated |
| 12 | Flat Washer | Carbon Steel Zinc Plated |
| 13 | O-Ring | NBR |
| 14 | Thrust Washer | Brass HPb59-1 (Type A) |
| 15 | Bonnet Gasket | EPDM |
| 16 | Wedge Nut | Brass HPb59-1 |
| 17 | Post Flange | EN-GJS-450-10 |
| Inch | mm | L | H (Max) | D | D1 (P.C.D.) | n-∅d |
|---|---|---|---|---|---|---|
| 4″ | 100 | 229 | 395 | 220 | 180 | 8-Ø19 |
| 5″ | 125 | 254 | 432 | 250 | 210 | 8-Ø19 |
| 6″ | 150 | 267 | 475 | 285 | 240 | 8-Ø23 |
| 8″ | 200 | 292 | 585 | 340 | 295 | 12-Ø23 |
| 10″ | 250 | 330 | 656 | 405 | 355 | 12-Ø28 |
| 12″ | 300 | 356 | 751 | 460 | 410 | 12-Ø28 |
| 14″ | 350 | 381 | 952 | 520 | 470 | 16-Ø28 |
| 16″ | 400 | 406 | 952 | 580 | 525 | 16-Ø31 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
