Product Certification
UL Listed / FM Approved (EX 15973)
Connection Ends
Flange to BS EN 1092-2:1997
Working Pressure
PN16
Temperature Range
0°C – 100°C
Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

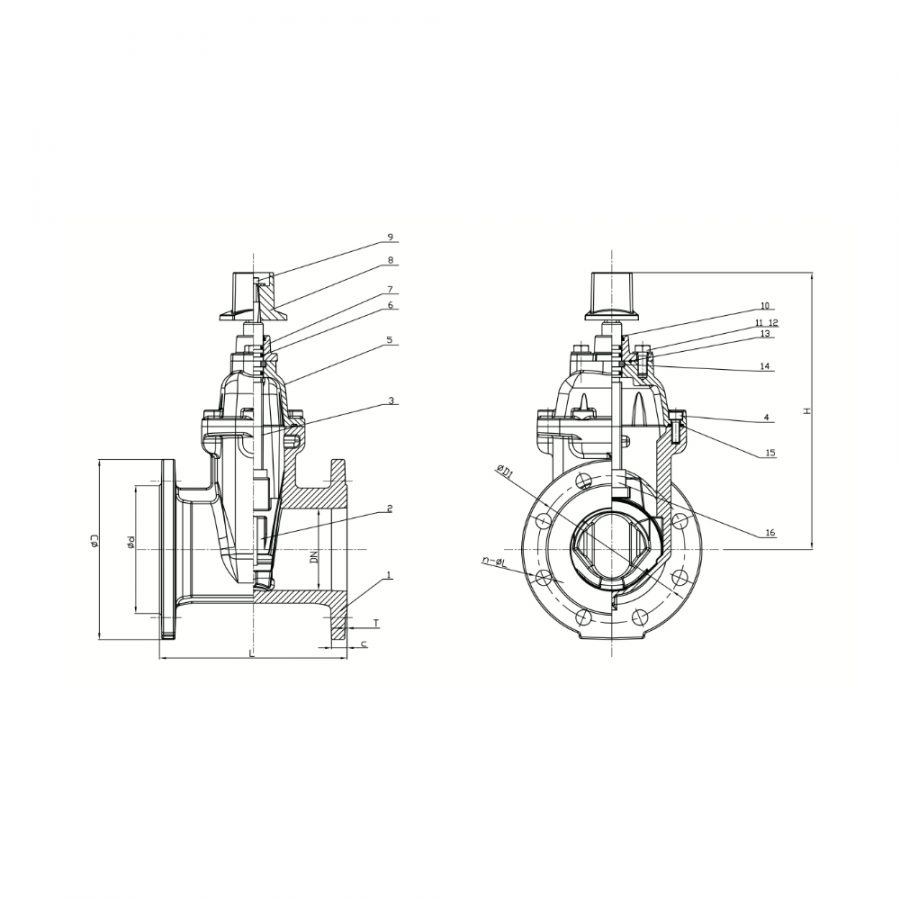

| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Valve Body | EN-GJS-450-10 |
| 2 | Resilient Wedge Disc | EN-GJS-450-10+EPDM |
| 3 | Stem | Stainless Steel |
| 4 | Bolt | Carbon Steel Zinc Plated |
| 5 | Bonnet | EN-GJS-450-10 |
| 6 | O-Ring | NBR |
| 7 | Gland | EN-GJS-450-10 |
| 8 | Stem Cap | EN-GJS-450-10 |
| 9 | Bolt | Carbon Steel Zinc Plated |
| 10 | Ring Wiper | EPDM |
| 11 | Bolt | Carbon Steel Zinc Plated |
| 12 | Flat Washer | Carbon Steel Zinc Plated |
| 13 | O-Ring | NBR |
| 14 | Washer(Type A) Axis Guide (Type B) | Brass Hpb59-1 |
| 15 | Bonnet Gasket | EPDM |
| 16 | Wedge Nut | Brass Hpb59-1 |
| Inch | mm | L | H (Max) | D | D1 (P.C.D.) | n-∅d |
|---|---|---|---|---|---|---|
| 2″ | 50 | 178 | 279 | 165 | 125 | 4-Ø19 |
| 2.5″ | 65 | 190 | 297 | 185 | 145 | 4-Ø19 |
| 3″ | 80 | 203 | 323 | 200 | 160 | 8-Ø19 |
| 4″ | 100 | 229 | 376 | 200 | 180 | 8-Ø19 |
| 5″ | 125 | 254 | 404 | 250 | 210 | 8-Ø19 |
| 6″ | 150 | 267 | 457 | 285 | 240 | 8-Ø23 |
| 8″ | 200 | 292 | 557 | 340 | 295 | 12-Ø23 |
| 10″ | 250 | 330 | 641 | 405 | 355 | 12-Ø28 |
| 12″ | 300 | 356 | 743 | 460 | 410 | 12-Ø28 |
| 14″ | 350 | 381 | 928 | 520 | 470 | 16-Ø28 |
| 16″ | 400 | 406 | 928 | 580 | 525 | 16-Ø31 |
| 18″ | 450 | 432 | 1165 | 640 | 585 | 20-Ø31 |
| 20″ | 500 | 457 | 1188 | 715 | 650 | 20-Ø34 |
| 24″ | 600 | 508 | 1364 | 840 | 770 | 20-Ø37 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
