Product Certification
UL Listed / FM Approved (EX 6624)
Material
ASTM A536
Threads
ASME B1.20.1
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

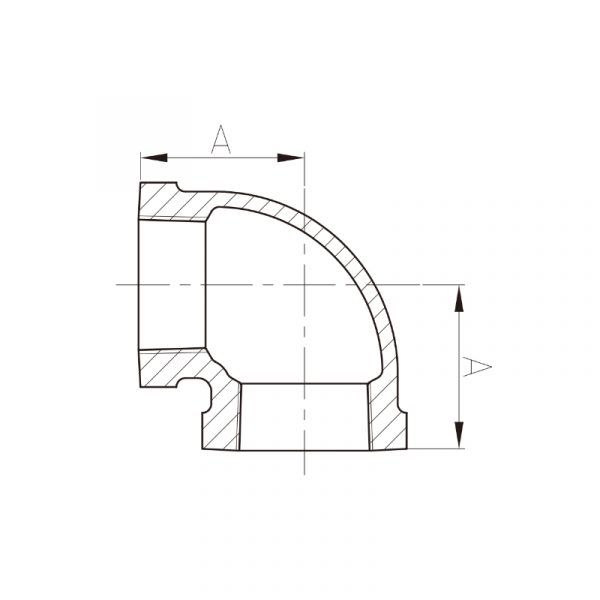

| Inch | mm | A |
|---|---|---|
| 1/2 | 15 | 28.5 |
| 3/4 | 20 | 33.3 |
| 1 | 25 | 38.1 |
| 1.1/4 | 32 | 44.5 |
| 1.1/2 | 40 | 49.3 |
| 2 | 50 | 57.2 |
| 2.1/2 | 65 | 68.6 |
| 3 | 80 | 78.2 |
